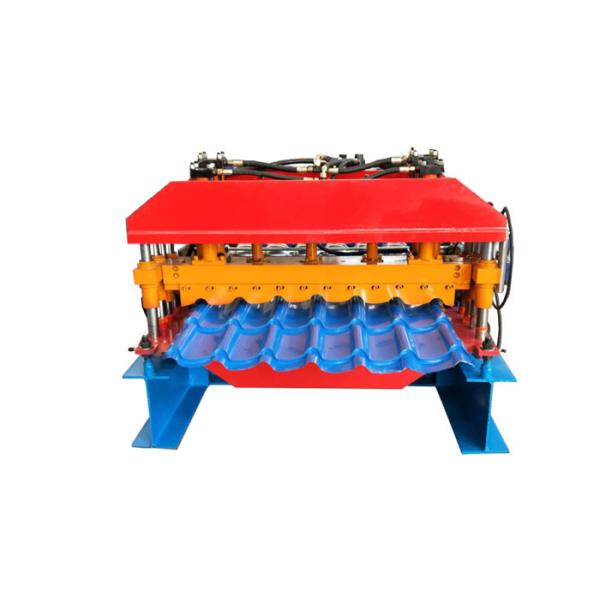

Colorful steel profile glazed tile roll forming machine for house roofing making
1. Know about our machine
This Colorful steel profile glazed tile roll forming machine for house roofing making is widely used in many kinds of industrial factory, workshop, civilian buildingsand so on , It has advantage of pretty appearance, durable using lower cost,high efficiency,reliable working and so on.
PLC control system provide automatic working program, client can set all the datum in the hand touch screen, then machine will produce the tile length and quantity according to your requirement.
2. Specifications of the roll forming production line
| Name of Roll Forming Machine | Metal sheet glazed tile roll forming machine color steel tile roofing production line |
| 1 | Suitable raw material | PPGI/PPGL/GI/GL Steel Coils |
| 2 | Thickness of coil sheet | 0.3-0.8mm |
| 3 | Feeding Coil width | 914mm |
| 4 | Effective width | 762mm |
| 5 | Under frame | 350H-beam |
| 6 | Diameter of Soild shaft | 70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway |
| 7 | Roller | High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment, hard chrome coated 0.05-0.07mm |
| 8 | Thickness of middle plate | 16mm |
| 9 | Forming stations | 13 stations |
| 10 | Drive type | By chains |
| 11 | Power of main motor | 5.5kw, Lichao, Shanghai |
| 12 | Power of pump station | 5.5kw, Lichao, Shanghai |
| 13 | Forming speed | About 3-5m/min |
| 14 | Hydraulic cutting | Controlled by PLC |
| 15 | PLC | DELTA, TAIWAN / Mitsubishi, Japan |
| 16 | Material of cutting blade | Cr12Mov, quenching 58-62℃ |
| 17 | Frequency converter | It has the advantage of slowing down before cutting, to ensure thelength accuracy(±1mm, far better than industrial standard ±3mm). |
| 18 | Switch | CHNT |
| 19 | Transducer | SAJ |
3. The advantages of the machine
The Advantages of Roll forming machine: solid shaft, PLC control, hydraulic system, fast production speed,long spanlife
Can design the machine as your drawing,machine color do you favor.
Delivery: Large capacity and Fast delivery,can accept third-party check before delivery
Perfect after-sales service: Our engineer can teach you how to install and operate the machine at your place,all machine parts are available.
The whole line including:uncoiler,roll forming machine,hydraulic station,hydraulic cutter,PLC control system, receiving table.
4. Our company profile
Our equipment keeps a foothold in the domestic market, at the same time, we've developed international market in many countries. Having exported our equipment to Europe, Africa, South America, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, we have received high praise from the foreign customers.
We have developed many new style Profile Forming Equipment, which enriches our products, makes our machinery more reasonable, artistic and practical. Therefore, we obtain the consistently high praise of new and regular customers.
5. Some machine pictures for your reference
6. FAQ
1. How to play order :
Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK
2. How to visit our company :
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.
Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.
3. When we exported the machines :
We have beening making and exporting the machines since from the year of 1998.
4. *Guarantee* :
Lifetime maintenance guarantee.If some part of the machine is broken.We will supply the best original parts for the machine from our own factory. If the parts are damaged due to improper operation, buyer will pay for the freight.
5. *After-sales* :
To give you the best after-sales service, the first give you video call with professional technicians , the second we send technicians to your country to repair the machine,
The buyer shall bear all expenses, including visa, round-trip airfare and suitable accommodation, and pay the salary of usd 100 / day.
